Home > Product > Exterior > In-ground up light

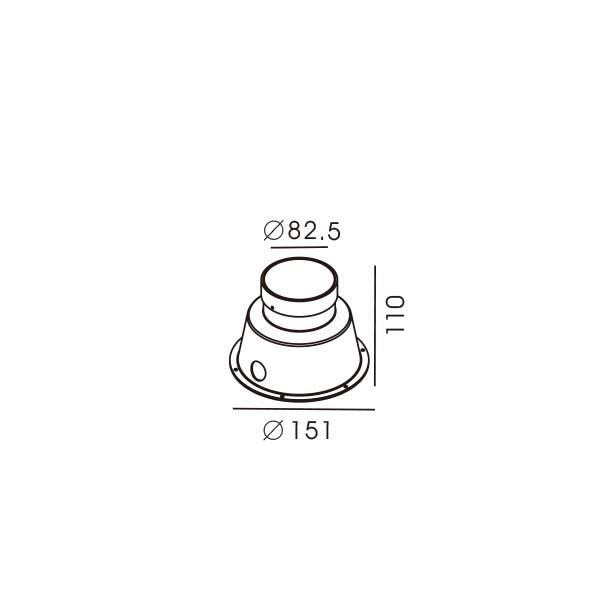

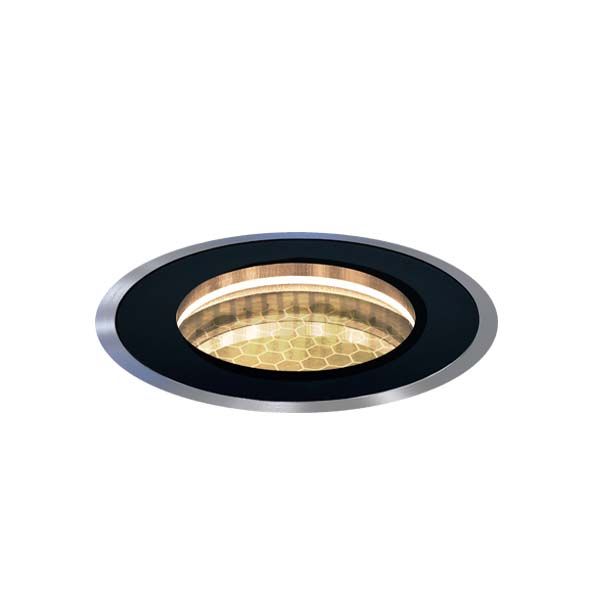

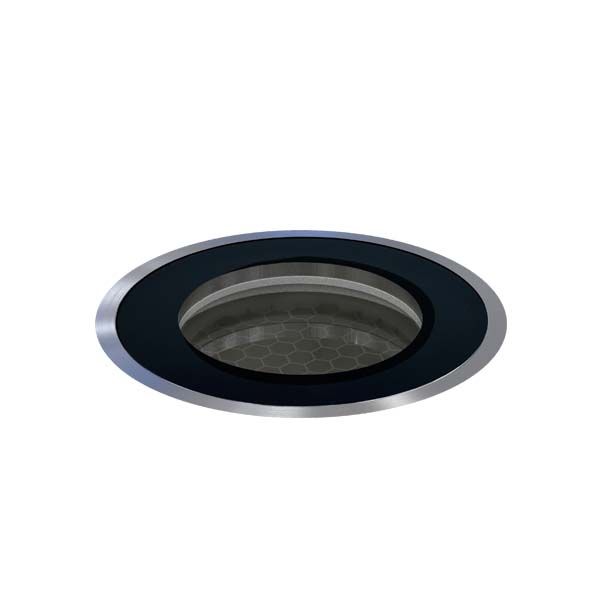

6005TSGA Erden Trimless 83 GA in-ground up light drawing with Honeycomb

6005TSGA

Erden Trimless 83 GA - IP68

Information

8mm Tempered glass front trim - IP68

Trimless

6005TSGA-AC ( with AC driver )

LED	W	Lumen	Kelvin	Ra	Current	Lens	Material
	3W	405 lm	3000K	90Ra	350mA	10° 20° 30°	GA GS
	4.4W	563 lm			500mA
	6.4W	774 lm			700mA

6005TSGA-DC (with DC 24Vdc Converter )

LED	W	Lumen	Kelvin	Ra	Current	Lens	Material
	3W	405 lm	3000K	90Ra	350mA	10° 20° 30°	GA GS
	4.4W	563 lm			500mA
	6.4W	774 lm			700mA

GA - 8mm Tempered glass front trim / Aluminium body

GS - 8mm Tempered glass front trim / 316L Stainless steel body
